EAN: 5027654523841 | SKU: TREPH/JIG

Trend Trend Pocket Hole Jig - Adaptable fast and simple jointing System

Ex. VAT
£87.46
Ex. VAT
£104.95
Inc. VAT

in stock
Free delivery

Buy Now Pay Later with PayPal

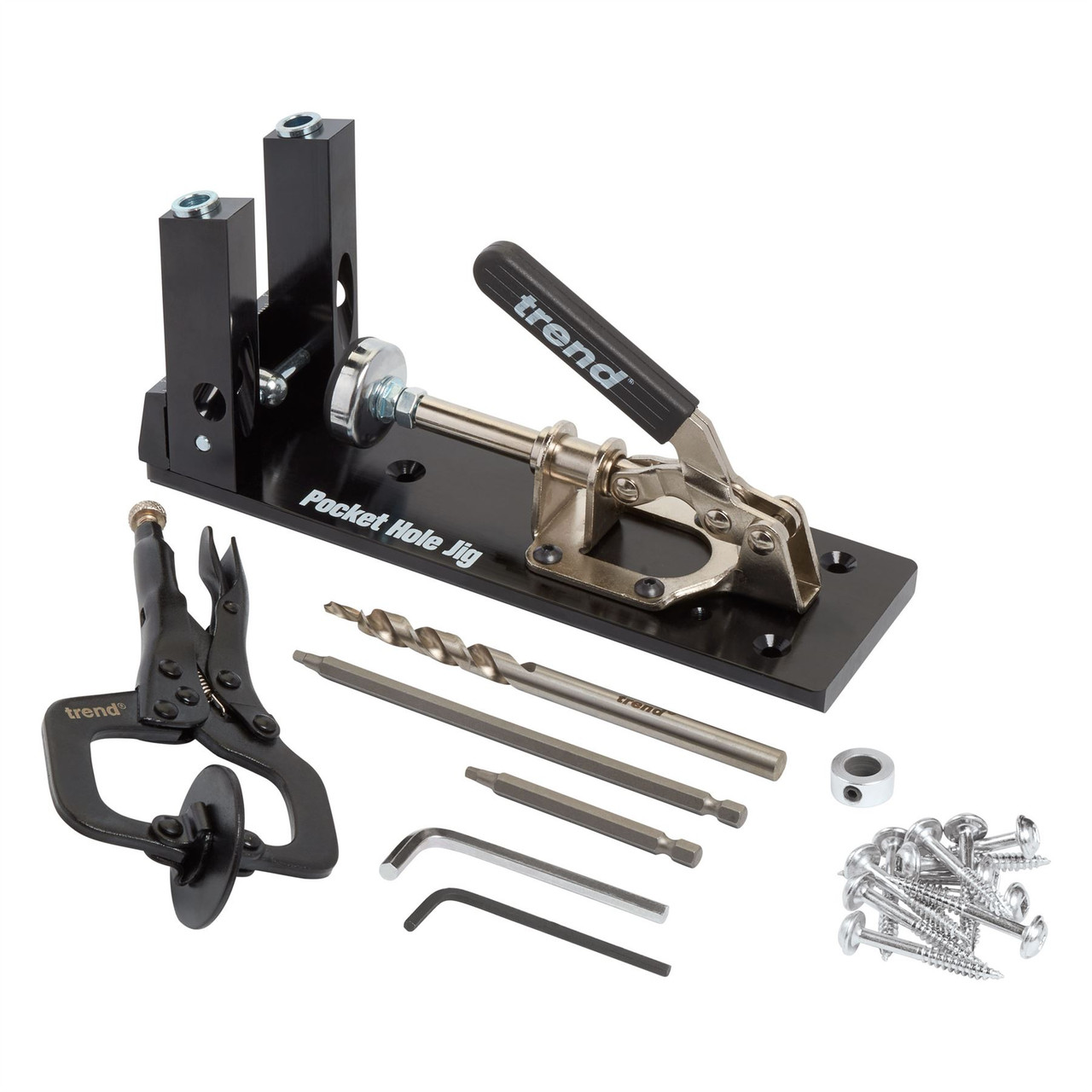

Trend PH/JIG Pocket Hole Jig

The Trend PH/JIG Pocket Hole Jig is designed for precision and efficiency, perfect for creating fast, accurate joints in timber and plywood. With solid hardened bushes and a variable pitch of 29mm to 63mm, it offers versatility for your woodworking projects.

Ideal for timber, MDF, plywood, and blockboard, this jig uses square drive self-tapping screws for secure connections. You can handle the workpiece immediately after gluing and screwing, without needing clamps, which enhances productivity.

The package includes 100 dome head screws, a face clamp, an HSS drill bit with collar, and two square drive bits.

Make your woodworking projects easier with the Trend PH/JIG Pocket Hole Jig.

Dimensions:

  • Material thickness min.=16mm
  • Material thickness max.=38mm
  • Material width min.=38mm
  • Hole pitch=29mm-63mm
  • Drill diameter=9.5mm
  • Square drive bit size=No.2
  • Screw sizes=No.7 x 30mm

Includes:

  • 100 x Dome head screws
  • 1 x Face clamp
  • 1 x HSS drill bit with collar
  • 1 x 75mm Square drive bit
  • 1 x 150mm Square drive bit
  • 1 x Hex key 4mm A/F
  • 1 x Hex key 2.5mm A/F
