EAN: 5055945282719 | SKU: IME012-I88RX10-KIT

Imex i88R Rotating Laser - New Series - LRX10 - Kit - 012-I88RX10-KIT

Out of stock


Imex i88R Rotating Laser - New Series - LRX10 - Kit - 012-I88RX10-KIT

With self-levelling, grade slope function, scan mode, horizontal and vertical,remote controller and 9Ah lithium-ion mm Digital Detector battery the Imex range represents excellent value with versatile capabilities for a full range of construction functions.Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based self-levelling system utilizing a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy. The simplified design elements and robust componentry also mean reduced calibration and service requirements. All backed by Imex warranty, service and innovative approach.

Features:

Robust construction tough horizontal/vertical laser level.

Horizontal/Vertical self levelling (electronic).

600m range.

Dual manual grade slope.

Calibration Certificate

9Ah lithium-ion battery – approx. 40 hours run time USB quick charge port with car charger

LRX10 Digital Detector in mm reading (German made)

90mm Detector reading ultra fine, fine, medium, course and ultra course.

Scan Mode – Allows for part beam rotation in selected working environments, i.e. on interior walls, busy work-sites where other laser interference may be present. Various scan lengths and rotation placement.

Dual Grade – Grade slope to 5° (8.8%) in two directions, X and Y axis Simultaneously for true grade control. Ideal for pipe layout or concrete slab falls.

Plumb Spot – Top and bottom plumb spot beam to assist in set ups over a point. Accuracy – +/- 1.5mm @ 30 metres for excellent results every time.

Remote Control Panel – allows grade or other functions to be carried out up to 20 m away from the instrument, for true one-man operation and greater efficiency.

Hi-Visibility Case – unique Imex feature, easy to see on the busiest construction site, minimises the risk of the unit being bumped, increasing safety and accuracy.

Specifications:

Self Levelling Range: +/-5°
Working Distance: 600m Diameter
Function; Horizontal/Vertical
Scan Mode: Yes, 0°, 10°, 45°, 90°, 180°
Accuracy: 1.5mm @ 30m
Rotation Speeds: 0, 60, 120, 300, 600 rpm
Waterproof/Shockproof: IP66
Light Source: Red 635nm Class II
Power: 9 Ah 3.7v lithium-ion
Detector: LRX10 Double Sided
Working time – continuous use: 40hrs approx Red
Charging Time: 4 hours in unit or removed from unit
USBC Charging: Yes; including 12v car charger
High Wind Sensitivity Re-set: Yes
Remote Control: Yes, iCR8
Weight – Unit Only: 2.48kg
Detector – German Made; LRX10 Double Sided
Detector – Pick Up; 90mm -30mm to +60mm
Detector Reading; Ultrafine – 0.5mm | Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm | Ultra Course – 10.0mm
Detector Power; 1-AA > 50 hrs run

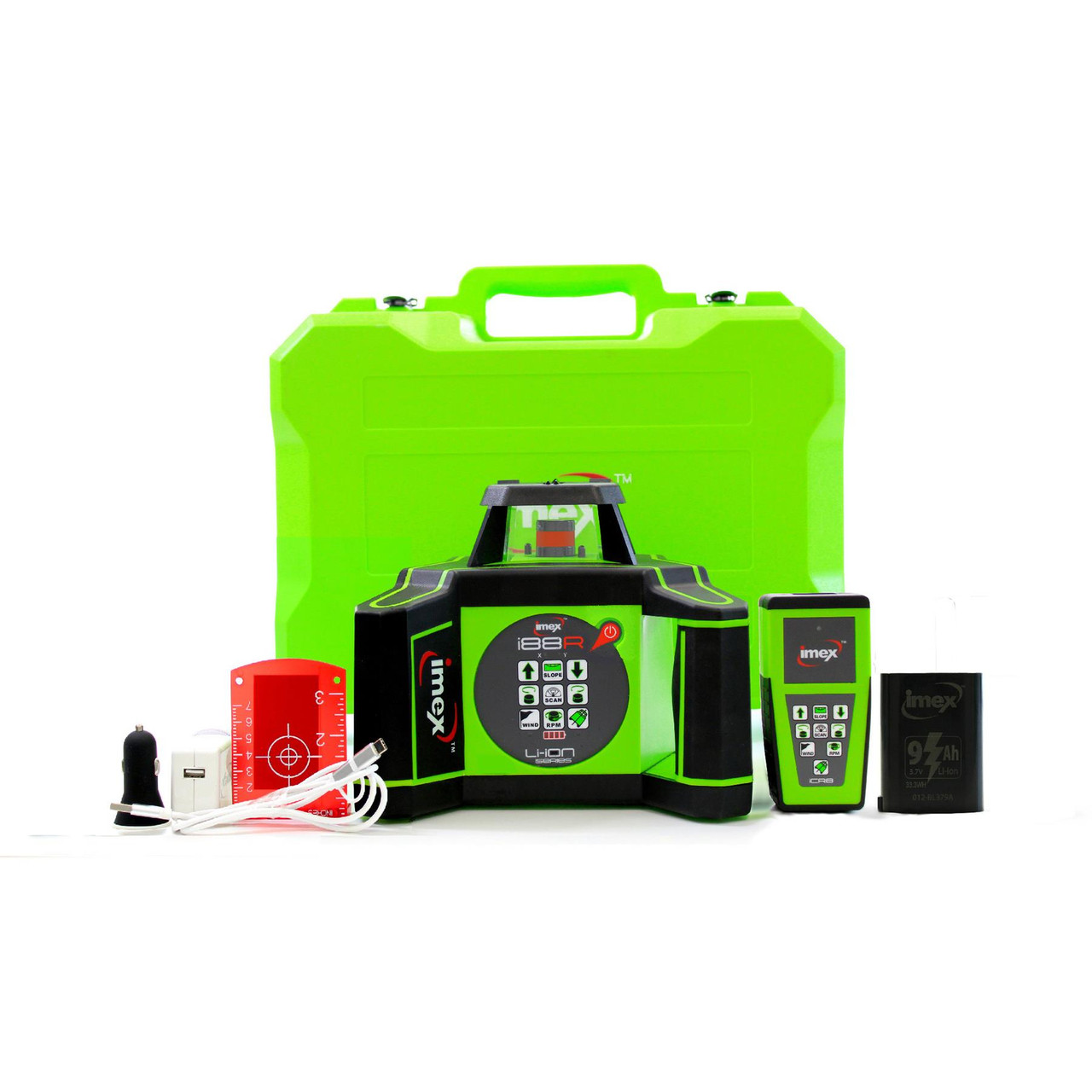

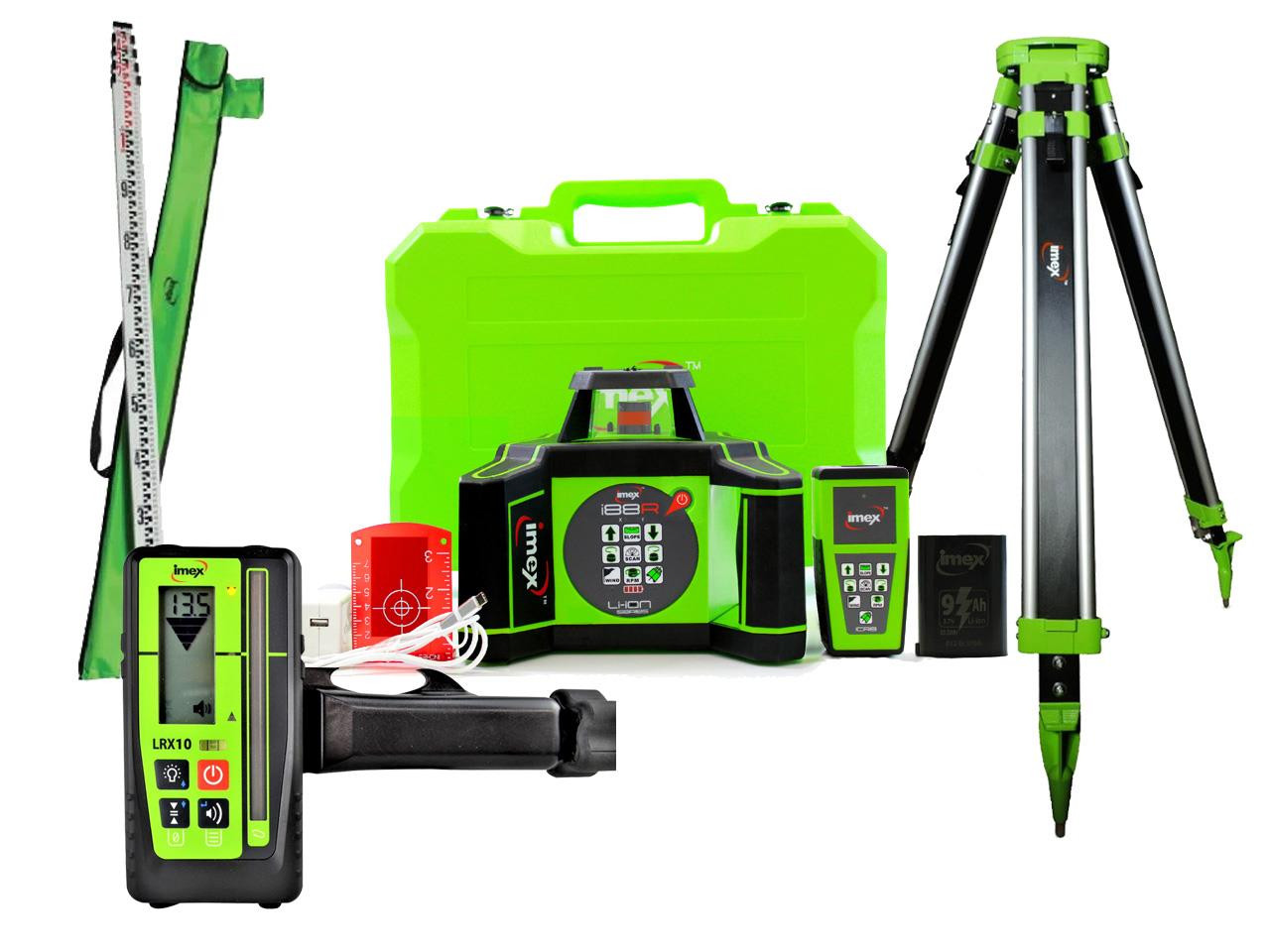

Comes With:

i88R laser level
Radio remote control
LRX10 detector & bracket
2 x 9.0Ah Lithium batteries
USB/C charging cable
Vehicle charger adaptor
Magnetic target plate
Hard carry case
Imex SJA30 tripod
Imex 012-IMEL5S staff

? Have Questions? Ask our Experts

Imex i88R Rotating Laser - New Series - LRX10 - Kit - 012-I88RX10-KIT

£749.96 Ex. VAT
£620.79
Ex. VAT
£899.95
£744.95
Inc. VAT
You save £227.00
