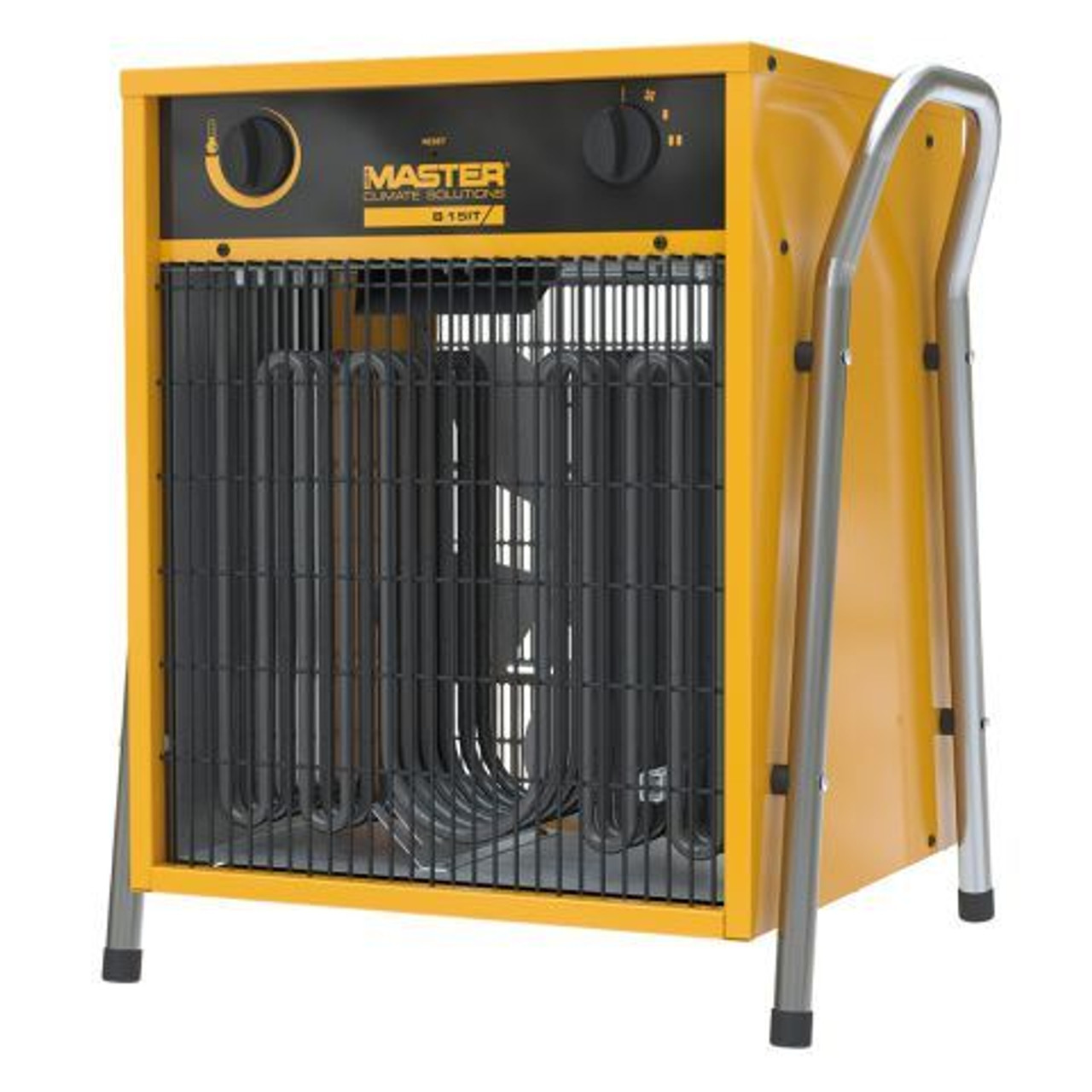

Master 415 Volt 15 Kw 32 Amp 5 Pin Electric Fan Heater B15IT
Electric heaters come in various forms and predominantly are either oil filled or fan assisted and are a great way to produce instant heat when you need it most.
Fan heaters work on the principle that an electrical current is passed through an element converting the energy in to heat, a fan to the rear of the heater element blows air over the heat source creating warm air.
The Elite and Master Range of electric heaters range from 2kW or 6,800 Btu to 40kW or 136,500 Btu and are available in 110, 240 and 415 Volts.
If you require any further technical advice regarding the right heater for the right job do not hesitate to contact any member of our sales team.
| Voltage : | 415 Volt (3 Phase) |
| Power cord (400 Volt) : | Optional Extra |
| Heat Settings (Fixed) : | 2 |
| Heating Power (Kw) Positions 3 & 4 : | 7.5 Kw & 15 Kw |
| Heating Power (Btu) Positions 3 - 4 : | 25,600 Btu Variable To 51,182 Btu |
| Heating Power (Kcal) Positions 3 - 4 : | 6,450 Kcal Variable To 12,900 Kcal |
| Cooling Fan Settings Position 2 : | 1 |
| Input Plug (Heater Side) : | 32 Amp |
| Thermostat Control (Analog) : | Included |
| Thermostat Control (Digital) : | Not Available |
| Air Displacement : | 1,700 M3/h |
| Working Temperature Range : | 5 > 35 Degrees C |
| Fan Type : | Axial |
| Power Fan Motor : | 30 - 95 Watts |
| Rated Current : | 22 Amp |
| Motor Thermal Protection : | Included |
| Overheat Thermostat Protection : | Included |
| Length : | 34.0cm |
| Width : | 47.0cm |
| Height : | 49.0cm |
| IP Rating : | IP24 |
| Trolley Wheel Kit : | Not Available |
| Noise Level : | 64 dB(A) |
| Weight : | 15kg |
