SKU: DEWDCD796P1

More Views

Customer reviews:

  • Barcode : 5035048678602
  • Manufacturer : Dewalt
  • Battery Capacity : 5.0ah
  • Battery Type : Li-Ion
  • Brand : Dewalt
  • Corded/Cordless : Cordless
  • Model : DCD796P1
  • MPN : DCD796P1
  • Voltage : 18.0V

Read full specification

Description

Dewalt DCD796P2 Combi Drill 18 Volt XR Brushless Compact Lithium-Ion complete with 1 x 5.0Ah batteries, charger and Tstak kitbox

The Dewalt DCD796 features 2nd generation brushless technology for 30% more power and excellent efficiency. Drill length has also been reduced to 190mm for an even more compact feel.

Features:

  • 18V XR Li-Ion compact hammer drill driver featuring NEW 5.0Ah Li-Ion battery technology
  • Brushless Motor Technology for excellent efficiency
  • Ultra compact, lightweight design allows use in confined spaces
  • Two speed all metal transmission for increased runtime and longer tool life
  • Drill Driver and Hammer feature for multiple applications
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • Intelligent trigger design allows for total control of application
  • Improved ergonomic design with rubber grip over mould improving users
  • comfort
  • Improved air flow to the motor for cooler electronics and incrreased power
  • 3 position super bright LED light
  • - SET 1 = LOW LIGHT LED on for 20s - 2.6 Lumens
  • - SET 2 = MEDIUM LIGHT LED on for 20s - 18 Lumens
  • - SET 3 = HIGH LIGHT LED on for 20min - 60 Lumens
  • Li-Ion battery packs allows for superior insertion and removal with state of charge indicator
  • Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster

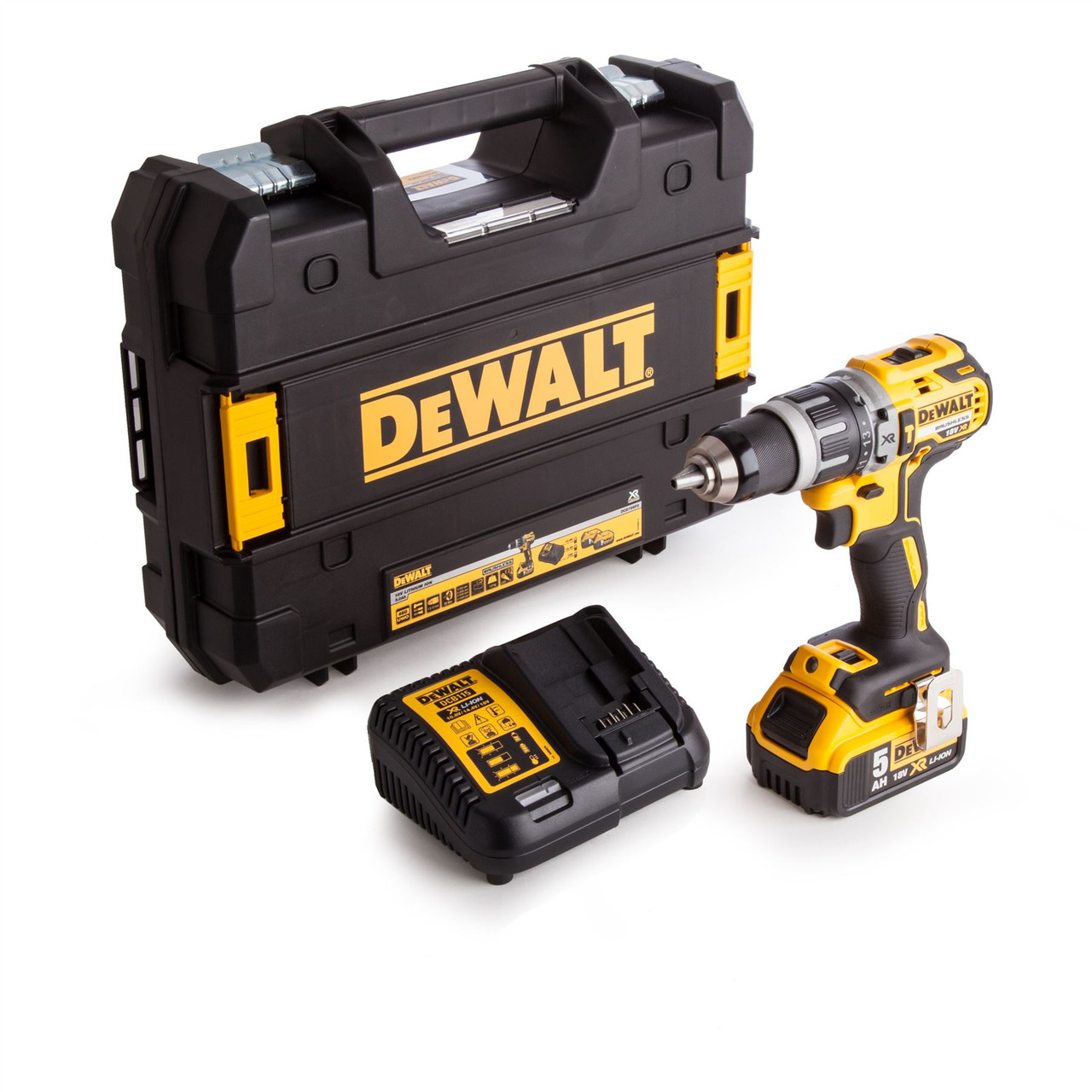

Comes With:

  • 1 x 5Ah lithium-ion batteries with state of charge indicator
  • Tstak carry case
  • DCB115 Multi voltage XR battery charger
  • Belt hook
  • Magnetic bit holder

Product Specification

  • Barcode: 5035048678602
  • Max Torque (Hard): 70 Nm
  • Max Torque (Soft): 27 Nm
  • Power Output: 460 Watt
  • No Load Speed: 0-550/2000 rpm
  • Beats per Minute: 0-9350/34000 bpm
  • Chuck Capacity: 1.5-13 mm
  • Max. Drilling Capacity [Wood]: 40 mm
  • Max. Drilling Capacity [Metal]: 13 mm
  • Max. Drilling Capacity [Masonry]: 13 mm
  • Length: 174 mm
  • Height: 203 mm
  • Width: 67 mm
  • Sound Pressure: 89 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
  • Sound Power: 100 dB(A)
  • Sound Power Uncertainty: 3 dB(A)
  • Hand/Arm Vibration - Drilling into metal: <2.5 m/s²
  • Uncertainty K 1 (Vibration): 1.5 m/s²
  • Hand/Arm Vibration - Hammer drilling into concrete: 11.5 m/s²
  • Uncertainty K 2 (Vibration): 1.6 m/s²
  • Hand/Arm Vibration - Screw driving without impact: <2.5 m/s²
  • Uncertainty K 3 (Vibration): 1.5 m/s²
  • Weight: 1.8 kg
  • Total Shipping Weight: 5kg

Specification

Barcode 5035048678602
Manufacturer Dewalt
Weight (in grams) 5000.0000
Battery Capacity 5.0ah
Battery Type Li-Ion
Brand Dewalt
Corded/Cordless Cordless
Model DCD796P1
MPN DCD796P1
Voltage 18.0V
